Dela 87010 — EPROM Programming Adapter

Last modified: Sep 04, 2018,  Page views: 390

Home Page: http://sharewareplus.blogspot.ca
Categories: roms
Compatible: C64, C64c
Price: £6.95
How to Order: Order from Shareware Plus by emailing sales@sharewareplus.com
Documentation: DELA Programming Adapter.pdf
Dela 87010, top front

Dela 87010, top front

Dela 87010, PCB only

Dela 87010, PCB only

Dela 87010, assembled adapter

Dela 87010, assembled adapter

Extra Hardware

EPROM EPROM

Similar Hardware

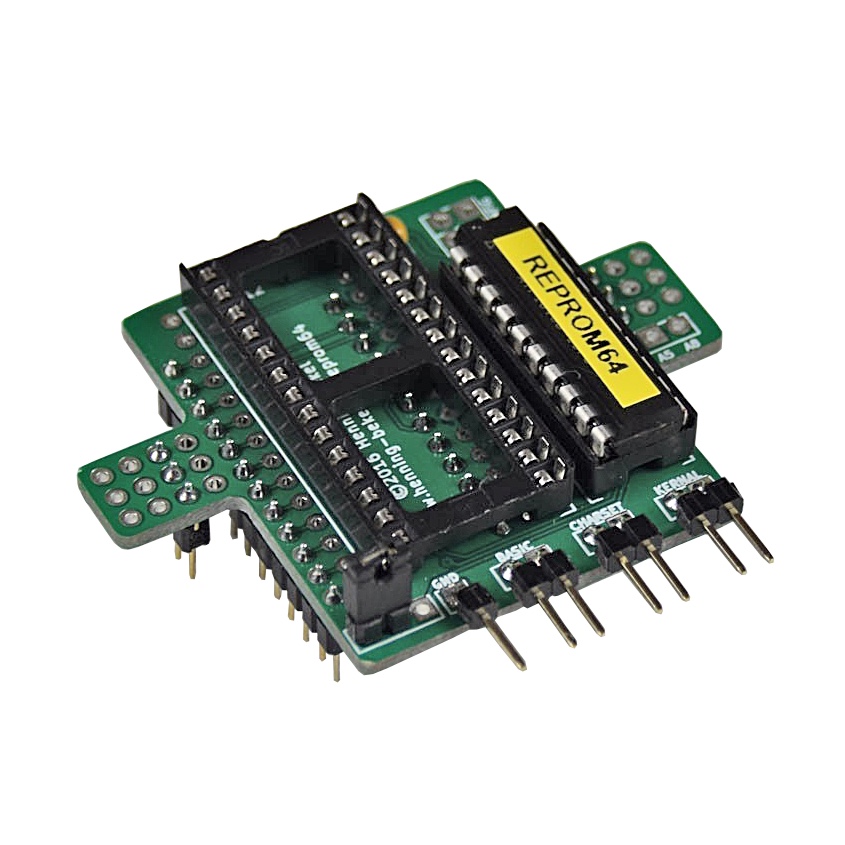

Reprom 64Reprom 64

My Take

Here's a little treasure buried away in the vast archives of Shareware Plus. I uncovered it when I dug through the history of posts on the Shareware Plus blog. It caught my attention, but I really had no idea what it was.

It's listed as a "KERNAL ROM Adapter" in the latest pricing guide, and it's mentioned in the blog as a "Multi-KERNAL ROM Adapter". That certain sounds interesting. But, how do you use it and what exactly does it do?

I tried searching for this on the web, and came up with very little. picclick.com captured this description from when someone was selling it on Ebay. But, it's not available there anymore.

A simple switchable Kernal ROM adaptor which accepts programmed 2532 and 27xxx Eproms. The larger the Eprom the more Kernals you can have. Using the 10 position DIL switch you can select the Eprom type and which bank to use, allowing you to have a multitude of different Kernals all on the same ROM. For Example Standard Commodore Kernal, Jiffy DOS, Dolphin DOS, Quick DOS and many more. Instructions from Dela included (in German) freeweb — ebay.com, 2017

I sent Tim Harris at Shareware Plus an email asking if he had the documentation. He very kindly mailed me a copy, in exchange for my offer to make him a digital copy. But, I should have noticed from that Ebay listing above, the documentation is in German! Fortunately, it's only 2 pages, and Google Translate exists. So I typed it up, ran it through, cleaned up the inevitably crufty machine translation, and present it to you as a beautifully formatted PDF file, linked in the documentation section above.

If you happen to speak German, perhaps you'll get something out of the originals that I didn't get out of it. So, here's the original:

Original Dela 87010 documentation, in German

The documentation never actually refers to its use as a KERNAL (or Multi-KERNAL) ROM adapter. Rather, it is designed to be seated into an EPROM burner, and allows you to burn 27256 type EPROMs (32 kilobytes), in a programmer that only supports 27128 type EPROMs (16 kilobytes).

It does this by using a bank of DIP switches that can set the upper addressing lines allowing the burner (or the computer) to see a larger EPROM as multiple smaller banks. There is also a switch that can be used to vary the voltage supplied to the chip.

The instructions are centered on how to use the adapter with various types of EPROMs in the DELA Eprommer I, and how to use the software to divide a larger rom image into smaller chunks and burn them individually. As far as I can tell, this Eprommer itself is no longer commercially available.

If however, via a different EPROM programmer, you are able to write multiple 8K C64 ROM images into the four 8K banks of, say, a 32K EPROM, then this adapter can be plopped into the KERNAL ROM socket of your C64. By adjusting the DIP switches, the computer will have access to the different ROM images. Handy.

Want to support my hard work? Here's how!

Description

Here's that description from EBay again:

A simple switchable Kernal ROM adaptor which accepts programmed 2532 and 27xxx Eproms.

The larger the Eprom the more Kernals you can have. Using the 10 position DIL switch you can select the Eprom type and which bank to use, allowing you to have a multitude of different Kernals all on the same ROM. For Example Standard Commodore Kernal, Jiffy DOS, Dolphin DOS, Quick DOS and many more.

Instructions from Dela included (in German)


Shareware Plus's blog states, simply:

We're excited about this, its a remake of the DELA 87010, a low cost, multi-kernal ROM Adapter for the Commodore 64. A great, simple solution to equipping your 64 with lots of different Kernals, all available at a flick of a switch!

The handy ROM selector by DELA, the 87010 is now available and includes instructions!


And, from the translated documentation, we get this description:

The DELA programming adapter allows you to program the 27256 type EPROMs with an eprom program that can program 27128 type EPROMs.

Additionally you can use the programming adapter with 2532 EPROMs and the Commodore ROMs.

The programming voltage can be lowered to 12.5V, so you can burn all 12.5V types of the 27xxx series.
