Okay, so I'm a bit C64 and C128 biased when it comes to Commodore 8-Bits. (And I've got a soft
spot for the VIC-20.) But I haven't had much experience with the PET, Plus/4 or other machines
like the C16/116.
When I saw some random chip adapters in the online store at Retro Innovations my first iteration
of the Buyer's Guide just left those out. But when I went back and tried to expand the listings
I decided to look into these adapters.
I'd never heard of a 6540 before. But I found a few resources online that might help you out.
This c64-wiki post, MOS Technology
Products, lists all the chips that MOS made. And according to this document, the 6540 was
used as the BASIC ROM in the PET and PET2001 computers. It's a 28 PIN DIP that came in a around
25 different revisions, and I'm guessing that none of these is readily available today.
If you've got a PET, and you need to put a newer JEDEC standard 2764-27512 EPROM in there, this
adapter is your adapter. I also found this document, which is essentially a
spec sheet for the 6540. This is the
documentation I've linked to above. It's not technically for this adapter, but this adapter is
a drop-in replacement for the 6540.
It looks like MOS 6540 had some Chip Select options to help map it into the right address space.
This adapter includes a 74LS138 decoder/demultiplexer that sits underneath the EPROM to implement
that feature of the 6540.
The best way to help C64OS.com grow and continue is
to purchase a commercial copy of C64 OS version 1.0.
Join the growing C64 OS user community. Take advantage of the powerful
and useful features available now, and get access to run new and future
software made for C64 OS.
Digital Ocean is a cloud hosting platform, built for developers. They make it simple
to get started. They have intuitive administrative tools and reasonable prices. And
they can scale as your needs grow.
If you sign up with this referral link, you'll get a $100 credit, and after you've
spent $25, I'll get $25. If you are looking for a cloud platform to host your website
or web app, this is win-win.
Sign up for Digital Ocean with this refereral link.
Save money and help C64OS.com at the same time.
Want to support my hard work? Here's how!

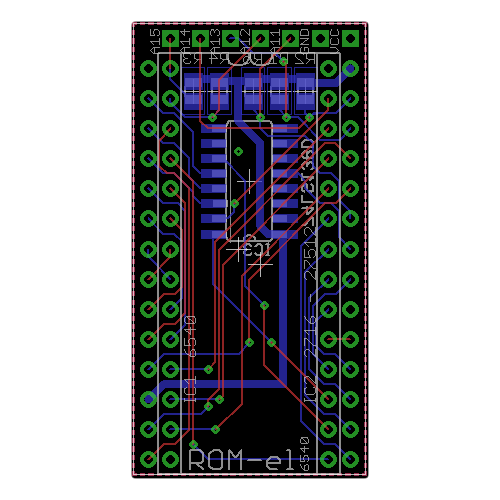

Perfect for the Do-It-Yourself vintage machine enthusiast, this PCB converts the MOS 6540 DIP
